BFT Waterjet Parts

WINWIN is the inventor and world leader in waterjet cutting solutions. With waterjet, you've got the versatility to cut any material, any shape, and any size.

Are you looking for BFT Waterjet Parts?

BFT Waterjet is a world-renowned waterjet cutting brand.And WINWIN’s BFT waterjet parts are also of the same quality.

With us you will find everything – from abrasive containers to dosing and cutting heads
to high-pressure components and special pipes.

Water is one of the most important forces of nature – strong, flexible and unstoppable. This is exactly what the “Green Efficiency” label symbolises: It distinguishes those high-pressure pumps that are particularly energy-efficient. In other words, real “professionals” in waterjet cutting who can significantly increase productivity in your company.


BFT Waterjet Main Pump Parts

Parts NumberParts Name
CP022010/527Bearing Bush
CP022012/780Back Ring
CP022011/150HP Seal
9704521/220Quad Ring
CP022012/780Distance Bushing
CP022012/780Flange
D23M20*65/046Cylinder Head Screws
CP022039/563Flange
CP022040/591Valve Body
CP022019/563Flange
CP022022/591Split Ring
CP022009/779Cylinder

BFT Waterjet HP Cylinder Parts

BFT WATERJET SPARE PARTS ORIGINAL

Parts NumberParts Name
CP022013/014Valve Seat
CP022066 220Ceramic Plunger
ORO759017/151O-ring
CP022022/591split ring
CP022009/591cylinder
CP022100/220HP seal kit
CP022021/593Threading Ring
XST17/220Rod sealing
XF29/220Rod WearRing

BFT Waterjet Parts

BFT WATERJET SPARE PARTS ORIGINAL
Parts NumberParts Name
CP022019/563Flange
CP022031/069Piston
CP022002/19Hydraulic Cylinder
CP022009/779Cylinder
CP022039/563Flange
HT022008/172Connection Flange

BFT Sealing Head Parts

BFT WATERJET SPARE PARTS ORIGINAL
Parts NumberParts Name
CP022047/844Union Pressure Side Complete
CP022046/593Valve seat
K016/660Ball
CP022045/775Valve Insert
XF97/220Spring
CP022042/593Lens
CP022046/593Valve Seat
CP020052/220Safety Bolt
CP022044/844Union Pressure Side
CP022109/844Union Suction Side Complete
CP022043/844Union Suction Side

BFT END CAP PARTS

BFT WATERJET SPARE PARTS ORIGINAL
Parts NumberParts Name
CP020031/473Guide Bolt
CP020034/255Spring
CP022021/593Threading Ring
HT022004/473Piston
CP020030/562Mechanical Sleeve
CP020032/562Supporting Ring
HT022008/172Connection Flange

BFT Pneumatic Valve Parts

BFT WATERJET SPARE PARTS ORIGINAL
Parts NumberParts Name
WJ055003/168Valve seat
WJ055013/591Bleed Down Valve Body
Pneumatic valve
WJ070005/551VALVE STEM
WJ070009/150SEAL
OR0043024/151ORING
WJ055023/527Guide Bushing
WJ055010256BUSHING
WJ055009/025Holder
WJ100037/152Adapter

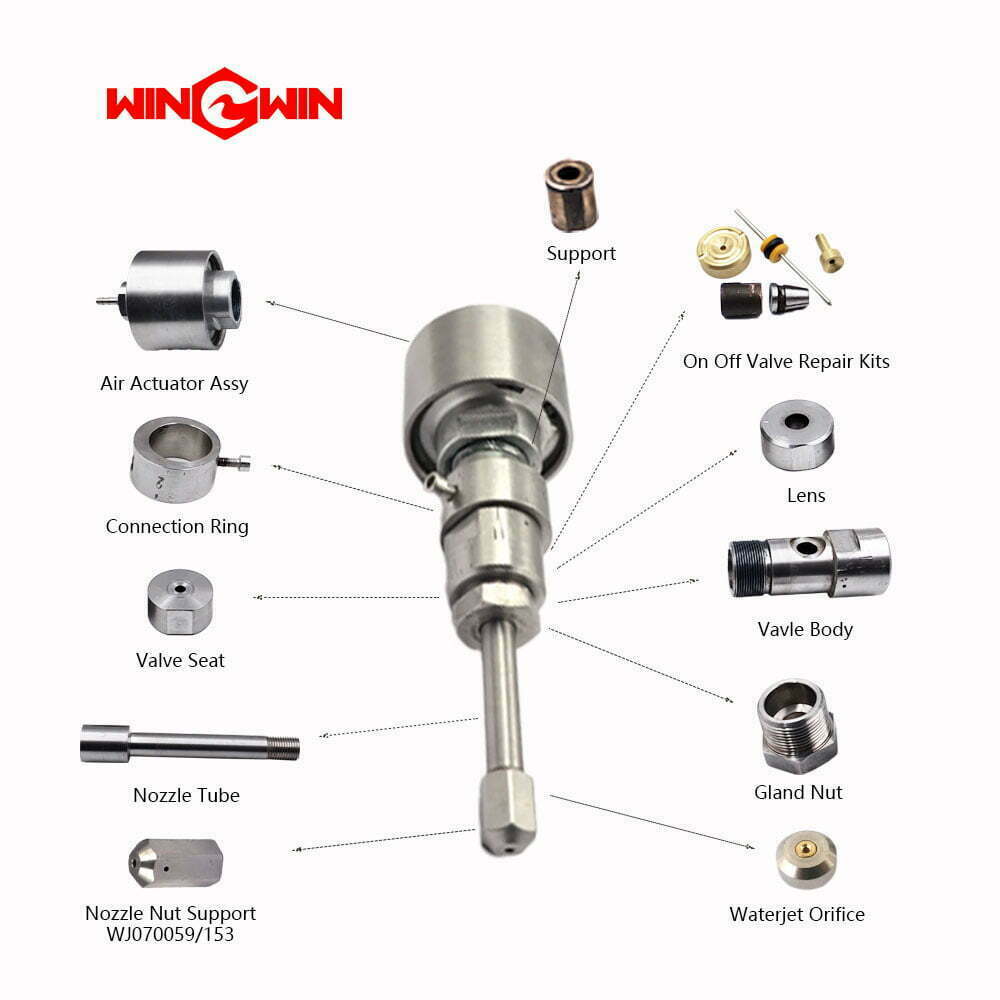

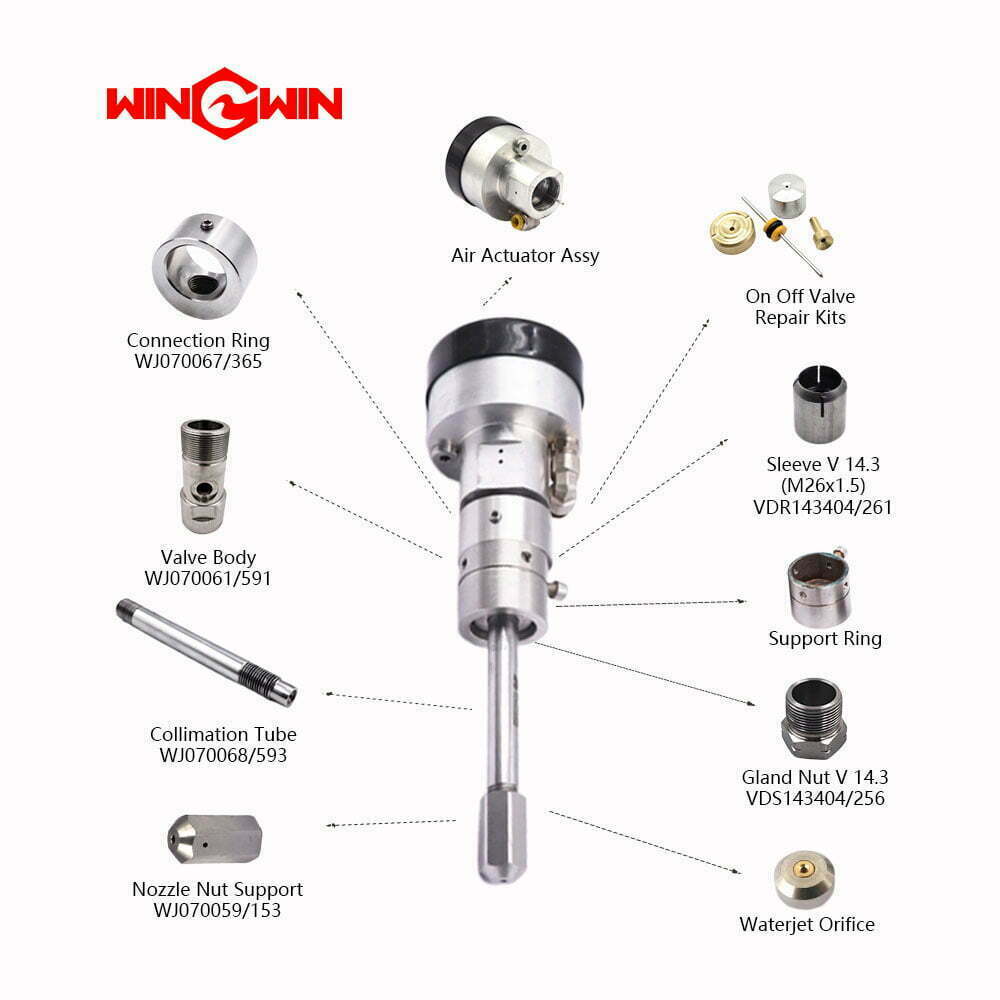

BFT Cutting Head Parts

BFT WATERJET SPARE PARTS ORIGINAL
BFT WATERJET SPARE PARTS ORIGINAL
Parts NumberParts Name
WJ070024/025Valve Body
WJ070003/168Valve Seat
WJ070004/590Inlet Lens Ring
WJ070005/551Valve Stem
WJ070006/168Gasket Support
WJ070007/527Support
WJ070008/527Guide Bushing
WJ070009/150HP-Sealing
O-Ring 4.3×2.4
WJ070029/025Stem
WJ070027/133Adjusting Nut
WJ070028/256Collet
WJ10026/256Counter Nut
WJ070014/004Thrust Piece
G01M6x8/359Thread Pin
WJ070015/320Cylinder
WJ070018/249Piston
VDS064401/256Gland Nut
WJ070032/153Nozzle Support

WINWIN can provide any BFT waterjet parts you need. Feel free to consult us.

The Other Waterjet Question You May Concern:

How much PSI does a water jet have?

Conventionally, high pressure is between 15,000 and 40,000 psi (103 and 276 MPa). Ultra-high pressure is between 40,000 psi to 75,000 psi (276 to 517 MPa).

For waterjet cutting, most pumps are between 55,000-60,000 psi (379 to 413 MPa).

WINWIN has provided our customer’s 90,000psi ultra-high pressure technology intensifier pump .And we are the first company in China to put 90,000PSI ultra-high pressure intensifier pump into production.
